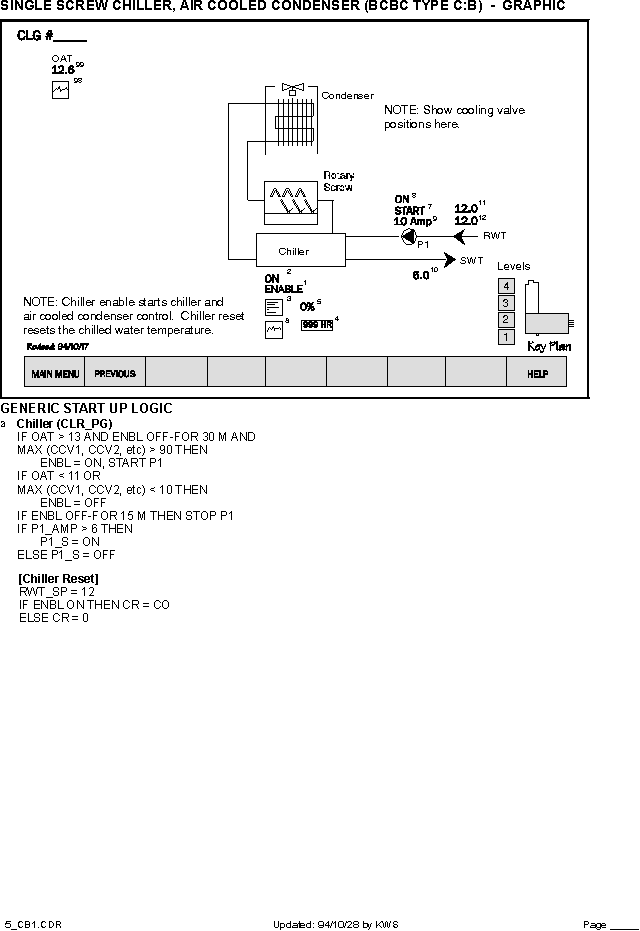

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type | D0 | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1 | Chiller Control | . | ENBL | CR1 | 1 | . | . | . | . | . | . |
| 2 | Chiller Status | . | S | CRS | . | 1 | . | . | . | . | . |
| 3 | Chiller Program | . | PG | PG | . | . | . | . | 1 | . | . |
| 4 | Chiller Run Hours | . | TZ | TZ | . | . | . | . | 1 | . | . |
| 5 | Chiller Reset | . | CR | DDC | . | . | 1 | . | . | . | . |
| Chiller Controller | . | CO | CO | . | . | . | . | 1 | use RWT:RWT_SP | . | |
| 6 | Chiller Trendlog | . | TL | TL | . | . | . | . | 1 | CR,SWT,RWT,ENBL | . |
| 7 | Chilled Water Pump | . | P1 | CR1 | 1 | . | . | . | . | . | . |
| 8 | Chilled Water Pump Status | . | P1_S | V | . | . | . | 1. | . | . | |
| 9 | Chilled Water Pump Amps | . | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| 10 | Supply Water Temperature | . | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 11 | Return Water Temperature | . | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 12 | Return Water Setpoint | . | RWT_SP | V | . | . | . | . | 1 | . | . |
| 13 | Chiller Weekly Schedule | WS | WS | 1 | |||||||
| Total | 2 | 1 | 1 | 3 | 7 | ||||||
