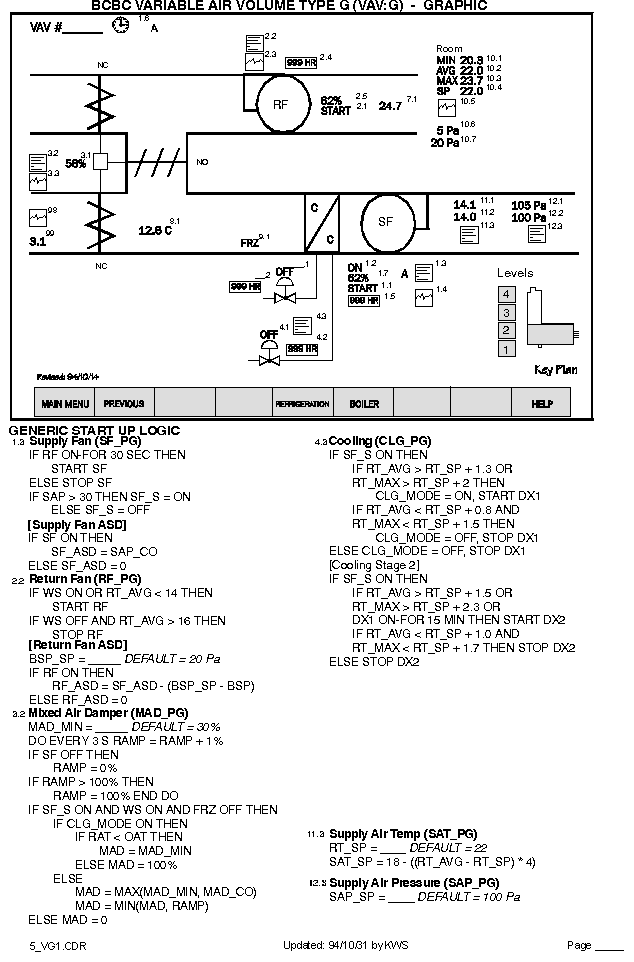

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.



Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic . Hardware Point .

Notes See Page #

Note #
  Point Description System Point

Point Type

D0 D1 A0 A1

Virtual Point

Comments
1.1 Supply Fan Start/Stop . SF CR1 1 . . . . . .
1.2 Supply Fan Status . SF_S V . . . . 1 . .
1.3 Supply Fan Program . SF_PG PG . . . . 1 . .
1.4 Supply Fan Trendlog . SF_TL TL . . . . 1 SF,SF_ASD,SAT,SAP .
1.5 Supply Fan Run Hours . SF_TZ TZ . . . . 1 . .
1.6 Weekly Schedule . WS WS . . . . 1 . .
1.7 Supply Fan ASD . SF_ASD DDC . . 1 . . . .
. Fan Failure Alarm . SF_AL AL . . . . 1 Use SF on for and SAP .
2.1 Return Fan Start/Stop . RF CR1 1 . . . . . .
2.2 Return Fan Program . RF_PG PG . . . . 1 . .
2.3 Return Fan Trendlog . RF_TL TL . . . . 1 "RF,RAT,BSP,ASD" .
2.4 Return Fan Run Hours . RF_TZ TZ . . . . 1 . .
2.5 Return Fan ASD . RF_ASD DDC . . 1 . . . .
3.1 Mixed Air Damper . MAD DA2 . . 1 . . . .
. Mixed Air Damper Controller . MAD_CO CO . . . . 1 use SAT:SAT_SP .
. Mixed Air Damper Minimum . MAD_MIN V . . . . 1 . .
. Mixed Air Damper Ramp . RAMP V . . . . 1 . .
3.2 Mixed Air Program . MAD_PG PG . . . . 1 . .
3.3 Mixed Air Trendlog . MAD_TL TL . . . . 1 SF_S,FRZ,MAD,MAT .
. Cooling Mode . CLG_MODE V . . . . 1 . .
4.1 DX Program . CLG_PG PG . . . . 1 . .
4.2 Stage 1-DX . DX1 CR1 1 . . . . . .
4.3 DX1 Run Hours . DX1_TZ TZ . . . . 1 . .
4._ Stage 2-DX . DX2 CR1 . . . . . As Required .
4._ DX2 Run Hours . DX2_TZ TZ . . . . . As Required .
4._ . . . . . . . . . . .
4._ . . . . . . . . . . .
7.1 Return Air Temperature . RAT DTS2 . . . 1 . . .
8.1 Mixed Air Temperature . MAT DTS1 . . . 1 . . .
9.1 Freeze Control . FRZ FRZ . 1 . . . . .
9.2 Freeze Control Reset . FRZ_RESET V . . . . 1 . .
. Freeze Control Flag . FRZ_FLAG V . . . . 1 . .
10.1 Room Temperature Minimum . RT_MIN V . . . . 1 . .
10.2 Room Temperature Average . RT_AVG V . . . . 1 . .
10.3 Room Temperature Maximum . RT_MAX V . . . . 1 . .
10.4 Room Temperature Setpoint . RT_SP V . . . . 1 . .
10.5 Room Temperature Trendlog . RT_TL TL . . . . 1 SAT,MIN,AVG,MAX .
10.6 Building Pressure . BSP DPS . . . 1 . . .
10.7 Building Pressure Setpoint . BSP_SP V . . . . 1 . .
11.1 Supply Air Temperature . SAT DTS2 . . . 1 . . .
11.2 Supply Air Temp Setpoint . SAT_SP V . . . . 1 . .
11.3 Supply Air Temp Program . SAT_PG PG . . . . 1 . .
12.1 Supply Air Pressure . SAP DPS . . . 1 . . .
12.2 Supply Air Pressure Setpoint . SAP_SP V . . . . 1 . .
12.3 Supply Air Pressure Program . SAP_PG PG . . . . 1 . .
. Supply Air Pressure Controller . SAP_CO CO . . . . 1 use SAP:SAP_SP .
  Total   3 1 3 5 30
