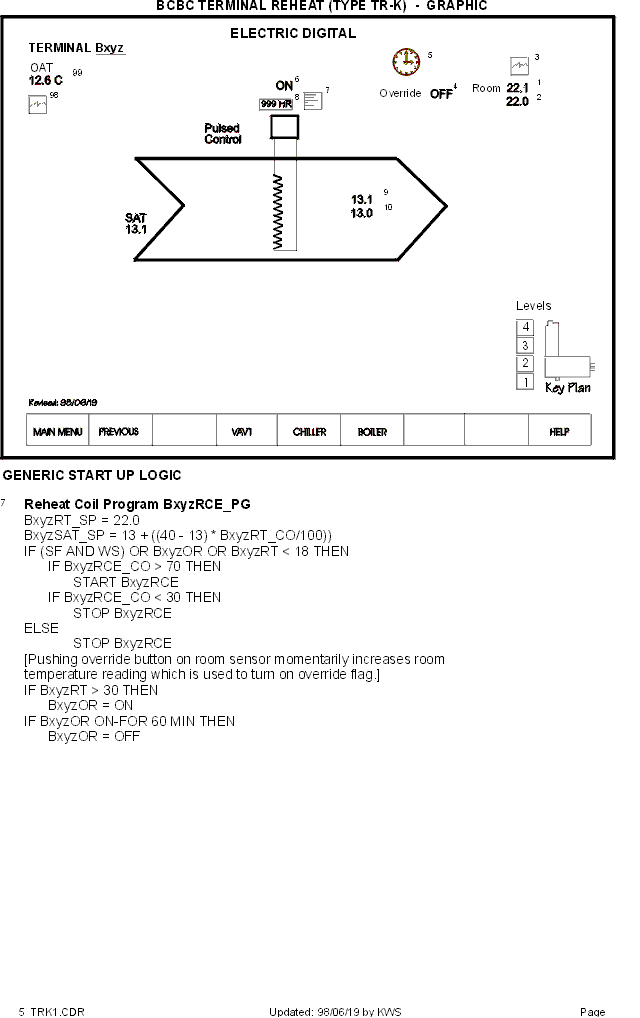

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point

Point Type

 D0 D1 A0 A1

Virtual Point

 Comments
1 Room Temperature . BxyzRT RTS1 . . . 1 . Wire OR button in parallel .
2 Room Temperature Setpoint . BxyzRT_SP V . . . . 1 . .
3 Room Trendlog . BxyzRT_TL TL . . . . 1 RT,RT_SP,RCV,RCV_CO .
4 Room Override . BxyzOR V . . . . 1 . .
5 Room Weekly Schedule . BxyzWS WS . . . . . See Spec 15925 .
6 Reheat Coil Electric . BxyzRCE . 1 . . . . Solid state relay .
. Reheat Coil Controller . BxyzRCE_CO CO . . . . 1 use SAT:SAT_SP .
7 Reheat Coil Program . BxyzRCE_PG PG . . . . 1 . .
8 Reheat Coil Runtime . BxyzRCE_TZ TZ . . . . 1 RCE Input .
9 Supply Air Temperature . BxyzSAT DTS1 . . . 1 . . .
10 Supply Air Temperature Setpoint . BxyzSAT_SP V . . . . 1 . .
. Room Temperature Controller . BxyzRT_CO CO . . . . 1

use RT:RT_SP

 .


Total

   1 0 0 2 8
NOTE: x = Floor # . . . . . . . . . . .
yz = Box # of Floor # . . . . . . . . . . .
For VAV# and Box # see mechanical schedule . . . . . . . . . . .
