Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:

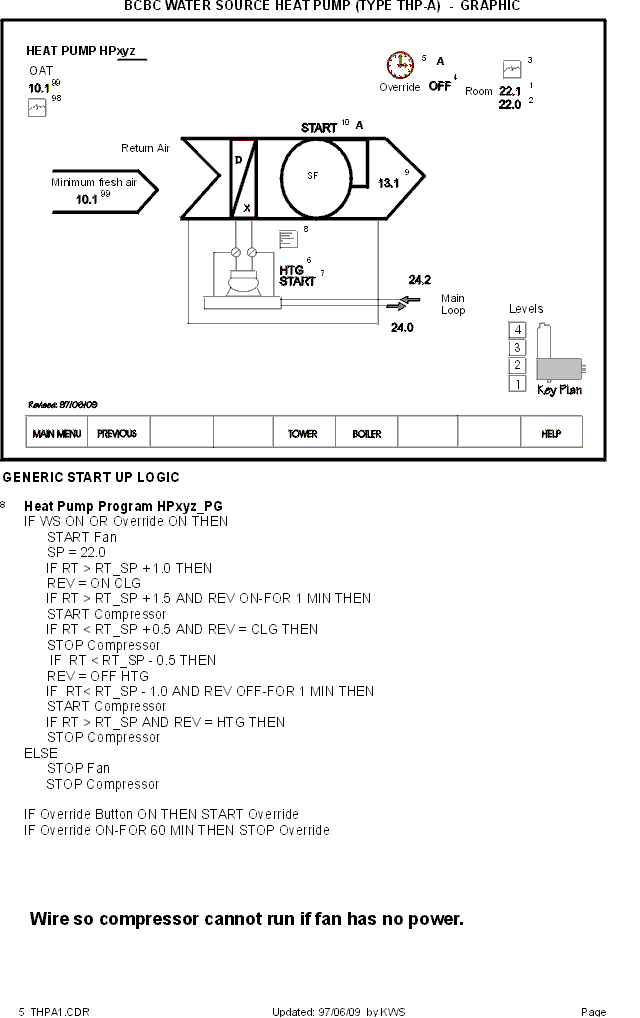

Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point

Point Type

 D0 D1 A0 A1

Virtual Point

 Comments
1 Room Temperature . HPxyz_RT RTS1 . . . 1 . . .
2 Room Temperature Setpoint . HPxyz_RT_SP V . . . . 1 . .
3 Room Trendlog . HPxyz_RT_TL TL . . . . 1 RT,SAT,REV,C .
  Room Override Button . HPxyz_OR_B RTS1 . 1 . . . Same sensor as 1 .
4 Room Override Time Left . HPxyz_OR_T V . . . . 1 . .
5 Room Weekly Schedule . HPxyz_WS WS . . . . . See Spec 15925 .
6 Reversing Valve . HPxyz_REV CR1 1 . . . . . .
7 Compressor Control . HPxyz_C CR1 1 . . . . . .
8 Heat Pump Program . HPxyz_PG PG . . . . 1 . .
9 Supply Air Temperature . HPxyz_SAT DTS1 . . . 1 . . .
10 Supply Fan . HPxyz_F CR1 1 . . . . . .


Total

   3 1 0 2 4
NOTE: x = Floor # . . . . . . . . . . .
yz = Heat Pump # of Floor # . . . . . . . . . . .
For Heat Pump # see mechanical schedule . . . . . . . . . . .
