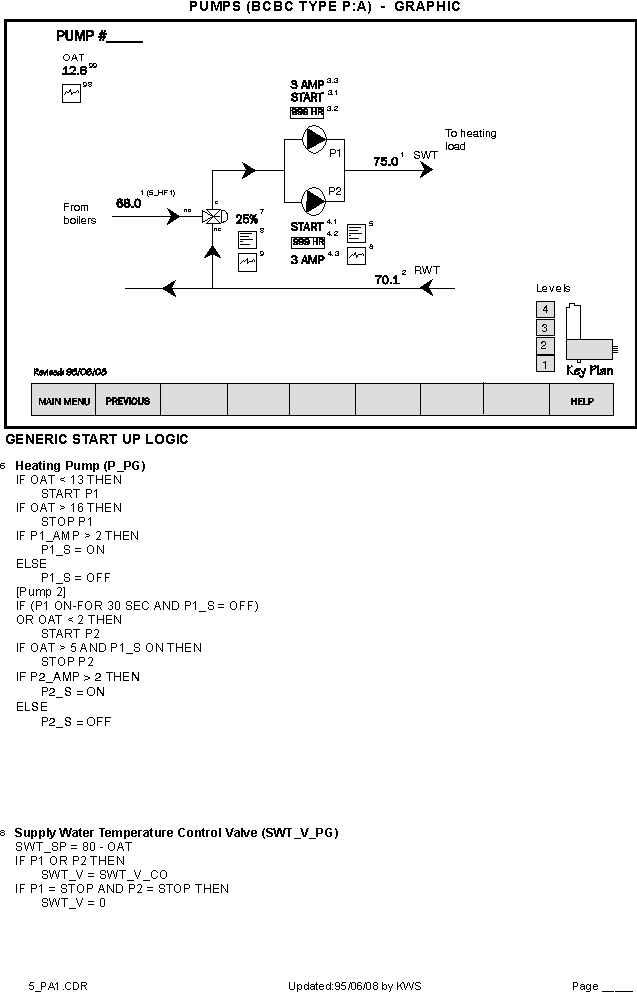

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type |
D0 | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1 | Hot Water Supply Temp | . | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 2 | Return Water Supply Temp | . | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 3.1 | Heating Pump 1 Control | . | P1 | CR1 | 1 | . | . | . | . | . | . |
| 3.2 | Heating Pump 1 Run Hours | . | P1_TZ | TZ | . | . | . | . | 1 | use P1 | . |
| 3.3 | Heating Pump 1 Amps | . | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| . | Heating Pump 1 Status | . | P1_S | V | . | . | . | . | 1 | . | . |
| 4.1 | Heating Pump 2 Control | . | P2 | CR1 | 1 | . | . | . | . | . | . |
| 4.2 | Heating Pump 2 Run Hours | . | P2_TZ | TZ | . | . | . | . | 1 | use P2 | . |
| 4.3 | Heating Pump 2 Amps | . | P2_AMP | CS1 | . | . | . | 1 | 1 | . | . |
| . | Heating Pump2 Status | . | P2_S | V | . | . | . | . | 1 | . | . |
| 5 | Heating Pump Program | . | P_PG | PG | . | . | . | . | 1 | . | . |
| 6 | Heating Pump Trendlog | . | P_TL | TL | . | . | . | . | 1 | "P1_AMP,P2_AMP,P1,P2" | . |
| 7 | Supply Water Control Valve | . | SWT_V | __ | 1 | . | . | . | . | . | . |
| . | Supply Water Valve Controller | . | SWT_V_CO | CO | . | . | . | . | 1 | use SWT:SWT_SP | . |
| 8 | Supply Water Valve Program | . | SWT_V_PG | PG | . | . | . | . | 1 | . | . |
| 9 | Supply Water Valve Trendlog | . | SWT_V_TL | TL | . | . | . | . | 1 | "SWT,SWT_SP,SWT_V,RWT" | . |
| Total | 3 | 0 | 0 | 4 | 10 | ||||||
