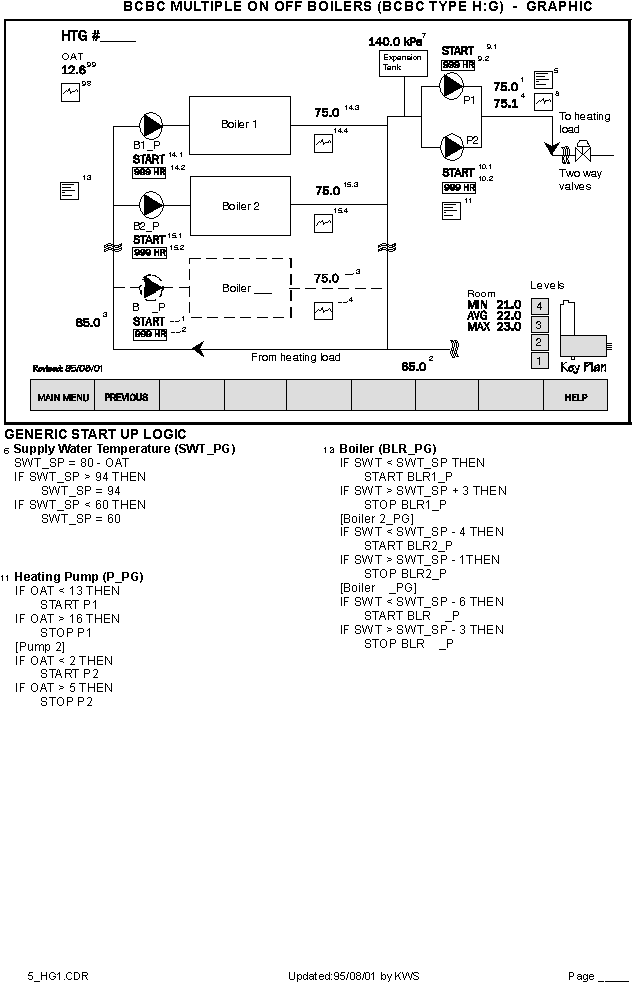

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type |
D0 | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1 | Heating Supply Water Temp | . | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 2 | Heating Return Water Temp | . | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 3 | Boiler Return Water Temp | . | B_RWT | PTS1 | . | . | . | 1 | . | . | . |
| 4 | Heating Supply Water Setpoint | . | SWT_SP | V | . | . | . | . | 1 | . | . |
| 5 | Heating Supply Water Program | . | SWT_PG | PG | . | . | . | . | 1 | . | . |
| 6 | Heating Supply Water Trendlog | . | SWT_TL | TL | . | . | . | . | 1 | SWT,SWT_SP,RWT,OAT | . |
| 7 | Expansion Tank Pressure | . | XT_PSP | PS1 | . | . | . | 1 | . | . | . |
| 9.1 | Heating Pump 1 Control | . | P1 | CR1 | 1 | . | . | . | . | . | . |
| 9.2 | Heating Pump 1 Run Hours | . | P1_TZ | TZ | . | . | . | . | 1 | use P1_S | . |
| 9.3 | Heating Pump 1 Amps | . | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| . | Heating Pump 1 Status | . | P1_S | V | . | . | . | . | 1 | . | . |
| 10.1 | Heating Pump 2 Control | . | P2 | CR1 | 1 | . | . | . | . | . | . |
| 10.2 | Heating Pump 2 Run Hours | . | P2_TZ | TZ | . | . | . | . | 1 | use P2_S | . |
| 10.3 | Heating Pump 2 Amps | . | P2_AMP | CS1 | . | . | . | 1 | . | . | |
| . | Heating Pump 2 Status | . | P2_S | V | . | . | . | . | 1 | . | . |
| 10.4 | Pump Bypass Valve | . | BPV | CR1 | 1 | . | . | . | . | . | . |
| . | Pump Flow | . | FLOW | V | . | . | . | . | 1 | . | . |
| 11 | Heating Pump Program | . | P_PG | PG | . | . | . | . | 1 | . | . |
| 12 | Heating Pump Trendlog | . | P_TL | TL | . | . | . | . | 1 | P1_AMP,P2_AMP,P1,P2 | |
| 13 | Boiler Control Program | . | BLR_PG | PG | . | . | . | . | 1 | . | . |
| 14.1 | Boiler 1 Pump Control | . | BLR1_P | CR1 | 1 | . | . | . | . | . | . |
| 14.2 | Boiler 1 Pump Run Hours | . | BLR1_P_TZ | TZ | . | . | . | . | 1 | . | . |
| 14.3 | Boiler 1 Supply Water Temp | . | BLR1_SWT | PTS1 | . | . | . | 1 | . | . | . |
| 14.4 | Boiler 1 SWT Trendlog | . | BLR1_SWT_TL | TL | . | . | . | . | 1 | RWT,BLR1_P,BLR1_SWT | . |
| 15.1 | Boiler 2 Pump Control | . | BLR2_P | CR1 | 1 | . | . | . | . | . | . |
| 15.2 | Boiler 2 Pump Run Hours | . | BLR2_P_TZ | TZ | . | . | . | . | 1 | . | . |
| 15.3 | Boiler 2 Supply Water Temp | . | BLR2_SWT | PTS1 | . | . | . | 1 | . | . | . |
| 15.4 | Boiler 2 SWT Trendlog | . | BLR2_SWT_TL | TL | . | . | . | . | 1 | RWT,BLR2_P,BLR2_SWT | . |
| __.1 | BoilerPump Control | . | BLR_P | CR1 | . | . | . | . | . | As Required | . |
| __.2 | BoilerPump Run Hours | . | BLR_P_TZ | TZ | . | . | . | . | . | As Required | . |
| __.3 | BoilerSupply Water Temp | . | BLR_SWT | PTS1 | . | . | . | . | . | As Required | . |
| __.4 | BoilerSWT Trendlog | . | BLR_SWT_TL | TL | . | . | . | . | . | As Required | . |
| . | Total |
5 | 0 | 0 | 8 | 15 | |||||
