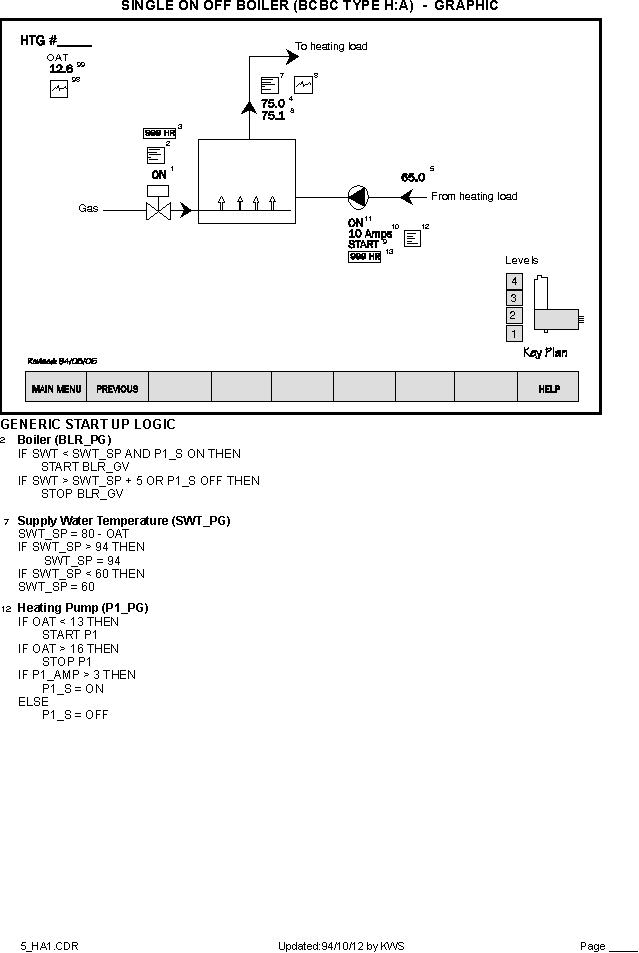

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type |
D0 | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1 | Boiler Gas Valve | . | BLR_GV | CR1 | 1 | . | . | . | . | . | . |
| 2 | Boiler Control Program | . | BLR_PG | PG | . | . | . | . | 1 | . | . |
| 3 | Boiler Run Hours | . | BLR_TZ | TZ | . | . | . | . | 1 | . | . |
| 4 | Supply Water Temperature | . | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 5 | Return Water Temperature | . | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 6 | Supply Water Setpoint | . | SWT_SP | V | . | . | . | . | 1 | . | . |
| 7 | Supply Water Program | . | SWT_PG | PG | . | . | . | . | 1 | . | . |
| 8 | Heating System Trendlog | . | TL | TL | . | . | . | . | 1 | SWT,SWT_SP,RWT,OAT | . |
| 9 | Heating Pump Control | . | P1 | CR1 | 1 | . | . | . | . | . | . |
| 10 | Heating Pump Amps | . | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| 11 | Heating Pump Status | . | P1_S | V | . | . | . | . | 1 | . | . |
| 12 | Heating Pump Program | . | P1_PG | PG | . | . | . | . | 1 | . | . |
| 13 | Heating Pump Run Hours | . | P1_TZ | TZ | . | . | . | . | 1 | . | . |
| Total | 2 | 0 | 0 | 3 | 8 | ||||||
